Electric vs Magnetic Fields

Tuesday, 11 September 2018

6:32 PM

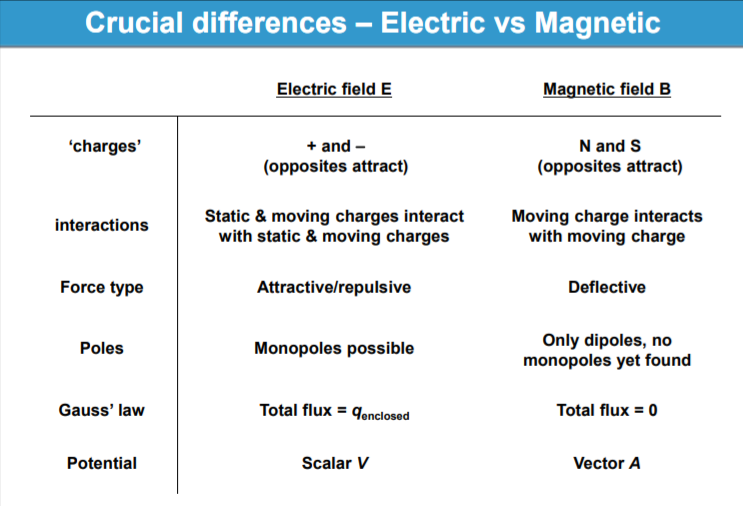

Machine generated alternative text: Crucial differences — Electric vs Magnetic 'charges' interactions Force type Poles Gauss' law Potential Electric field E + and — (opposites attract) Static & moving charges interact with static & moving charges Attractive/repulsive Monopoles possible flux qonclosod Scalar V Magnetic field B N and S (opposites attract) Moving charge interacts with moving charge Deflective Only dipoles, no monopoles yet found Total flux = O Vector A
