Phasors

Monday, 17 September 2018

12:17 PM

A phasor is a complex number that represents the amplitude and phase of a sinusoid.



A phasor is a representation of a wave based on Euler's identity



 becomes the real part

 becomes the imaginary part





Using Euler's Identity

Where



V is the phasor representation of the sinusoid



Time-domain Representation



Phasor-domain Representation

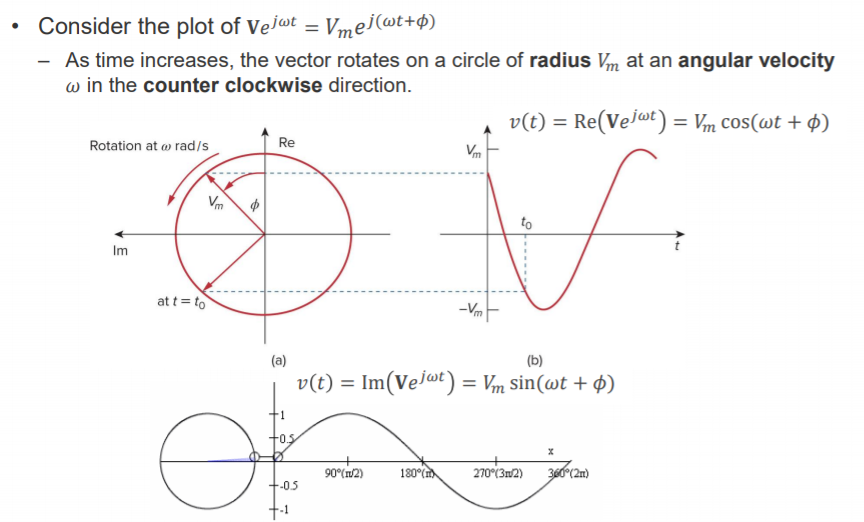

Machine generated alternative text: • Consider the plot of vejot = V ej@t++) — As time increases, the vector rotates on a circle of radius V" at an angular velocity in the counter clockwise direction. Rotation at rad Is 1m at t = to Re v(t) = Re(VejWt) = Vrn cos(wt + V) (b) v(t) = Irn(VejØt) = Vm sin(wt + 4))

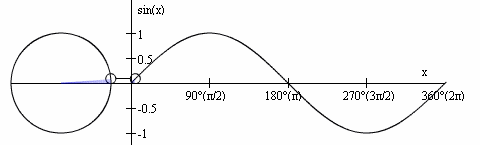

Web content titled: Pi Day GIF - Find & Share on GIPHY
