Inverting Amplifiers

Monday, 10 September 2018

12:44 PM

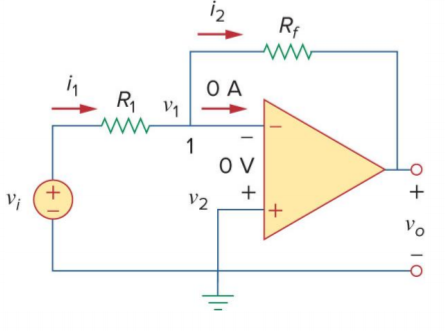

An inverting amplifier reverses the polarity of the input signal whilst amplifying it.



  • The noninverting input is grounded.
  • The inverting input is connected to the output via a feedback resistor,
  • The input voltage , is also connected to the inverting input via another resistor

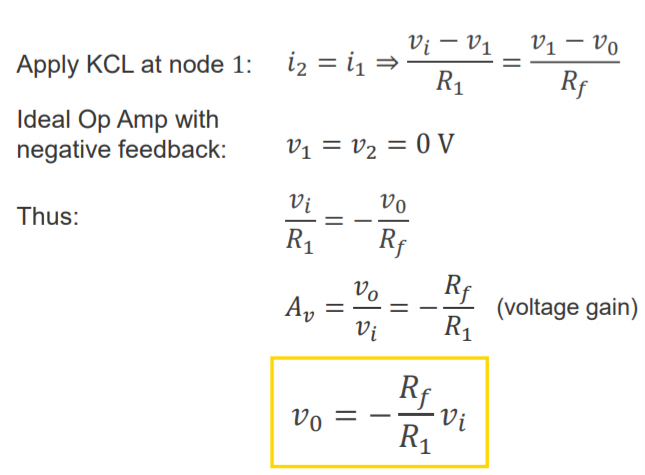

Machine generated alternative text: Vi — VI Apply KCL at node 1: Ideal Op Amp with negative feedback: vo Thus: (voltage gain) VO =
