Exercise

Monday, 10 September 2018

1:31 PM

Untitled picture.png Machine generated alternative text:

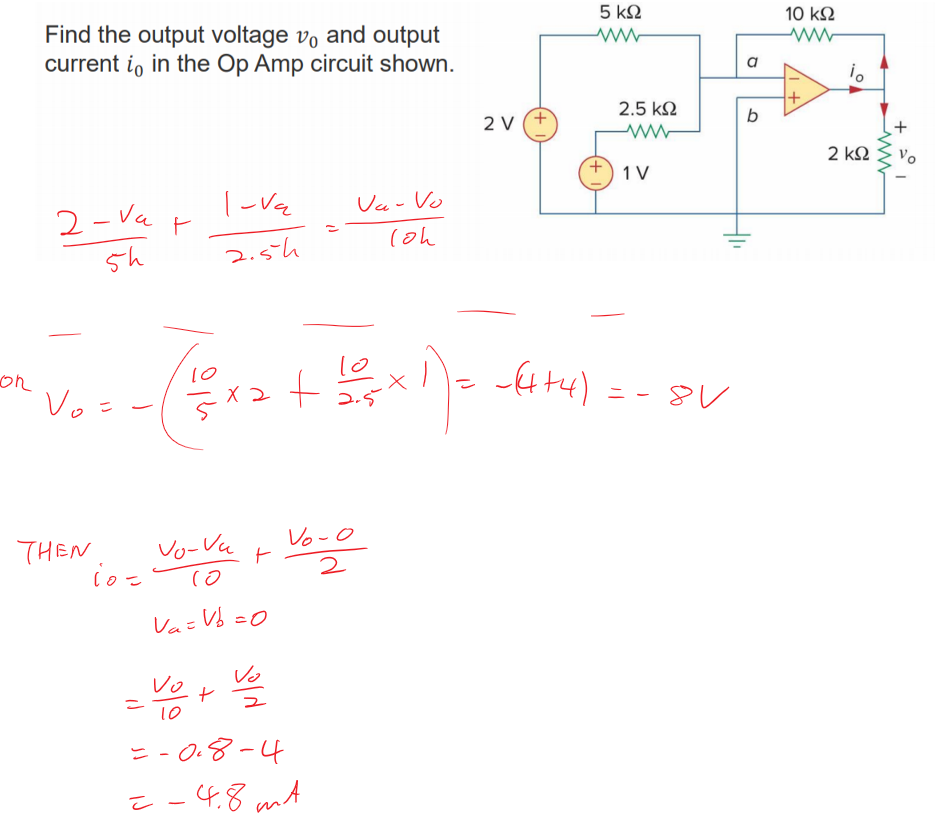

Find the output voltage vo and output
current io in the Op Amp circuit shown.
10 kQ
a
o
2.5 kQ
o
