Circuit Symbol

Monday, 10 September 2018

12:12 PM

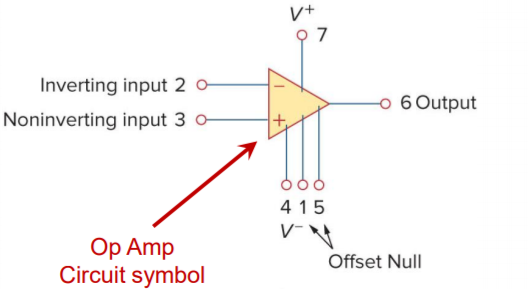

Machine generated alternative text:
Inverting input 2
Noninverting input 3
Op Amp
Circuit symbol
7
6 Output
Offset Null
