Inductors in Series

Monday, 27 August 2018

1:44 PM

Machine generated alternative text:

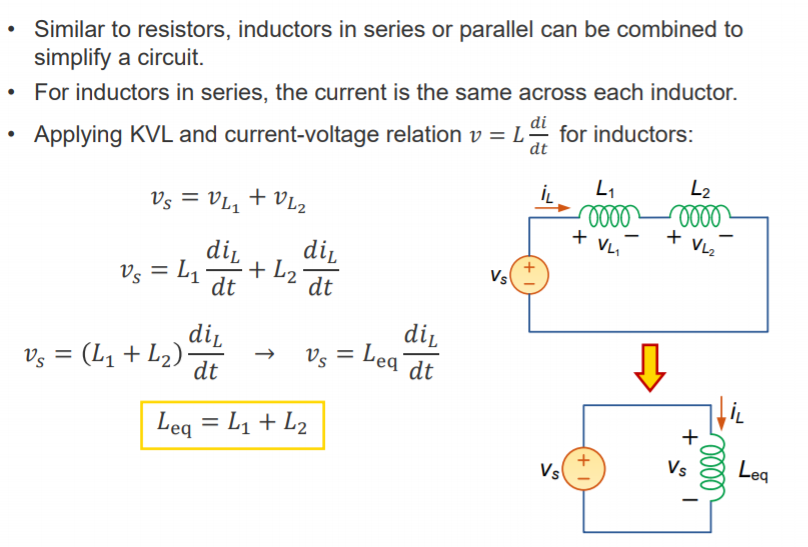

• Similar to resistors, inductors in series or parallel can be combined to
simplify a circuit.
• For inductors in series, the current is the same across each inductor.
Applying KVL and current-voltage relation v = L— for inductors:
VS = VLI + VL2
dt
iL
diL
dt
diL
dt
diL
2 dt
diL
eq dt
VS
I-eq

Machine generated alternative text:

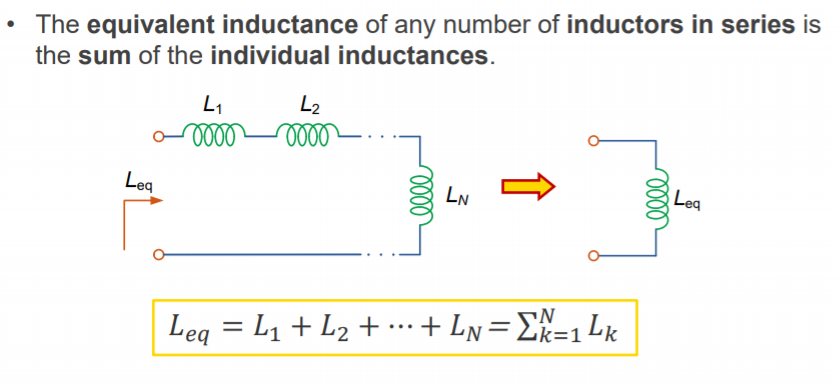

• The equivalent inductance of any number of inductors in series is
the sum of the individual inductances.
Leq = LI L2 •
+ LN
