Inductors in Parallel

Monday, 27 August 2018

1:45 PM

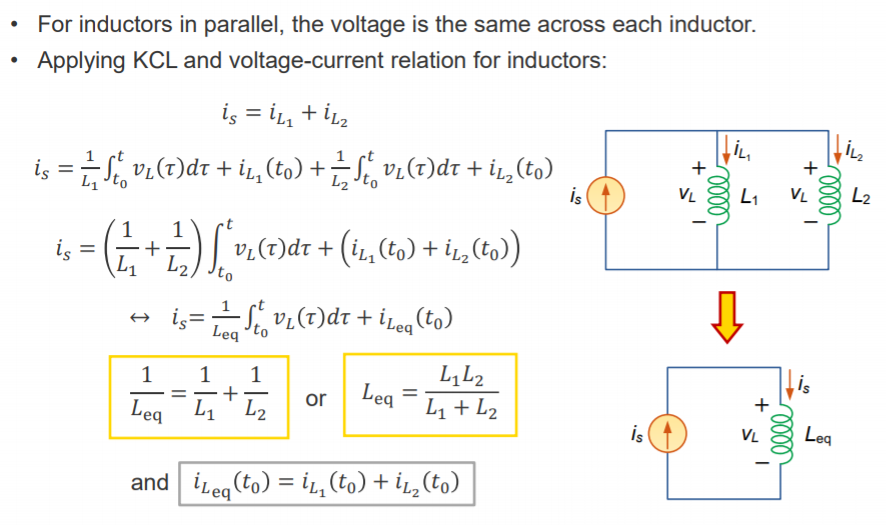

• For inductors in parallel, the voltage is the same across each inductor. Applying KCL and voltage-current relation for inductors: Is = iL1 + iL2 is = to + hi (to) + + iL2(to) is + (iL1 (to) + ha (to)) Leg to (to) VL L2 eq and iLeq (to) or eq = Ll + 142 iL1 (to) iL2 (to)

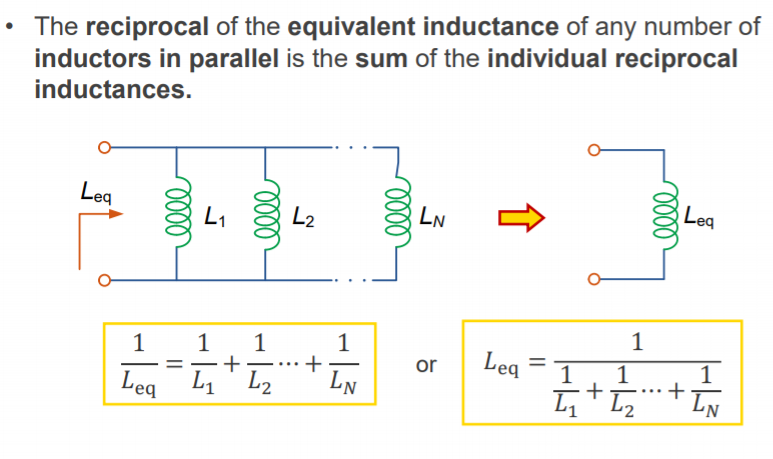

• The reciprocal of the equivalent inductance of any number of inductors in parallel is the sum of the individual reciprocal inductances. 1-2 or
