Exercise

Monday, 27 August 2018

12:52 PM

Machine generated alternative text:

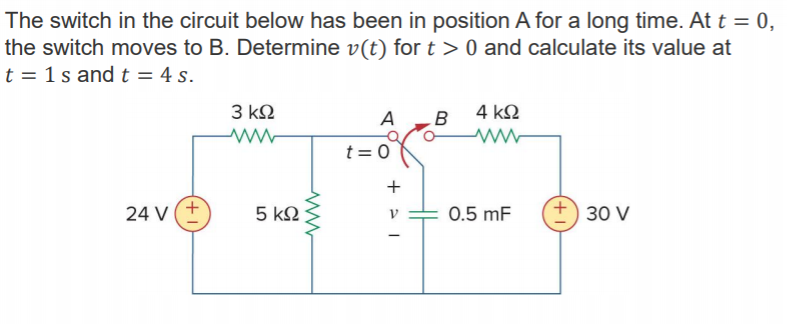

The switch in the circuit below has been in position A for a long time. At t = O
the switch moves to B. Determine v(t) for t > O and calculate its value at
t = Is and t = 4 s.
A
24 v
B 4kQ
0.5 mF
30 v

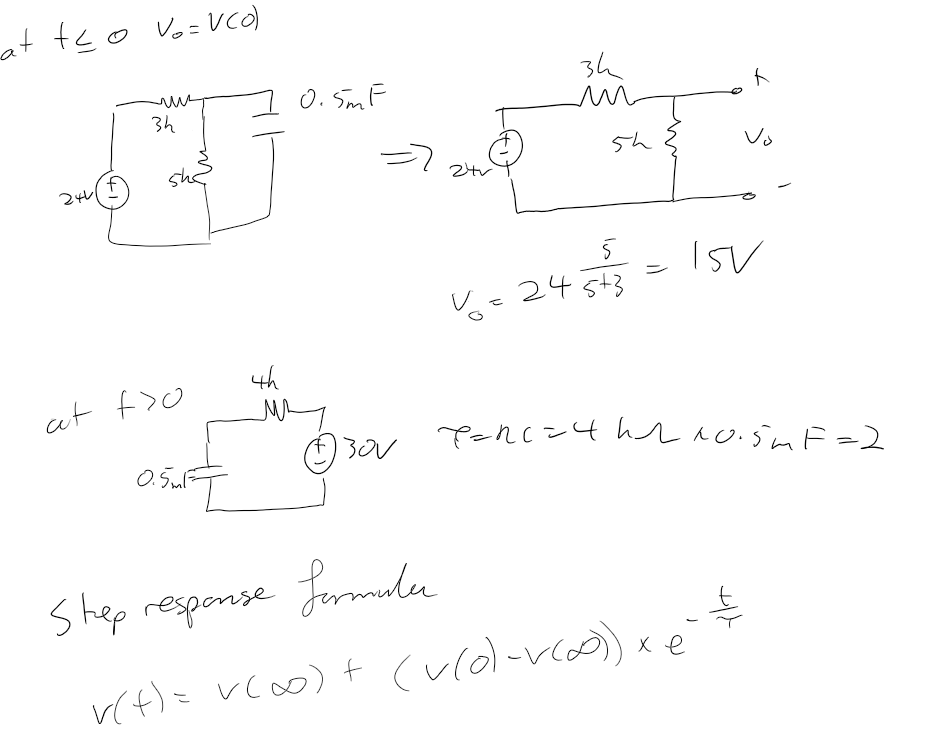

Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings

Ink Drawings
Ink Drawings
Ink Drawings
