Example

Thursday, 23 August 2018

12:46 PM

Untitled picture.png Machine generated alternative text:

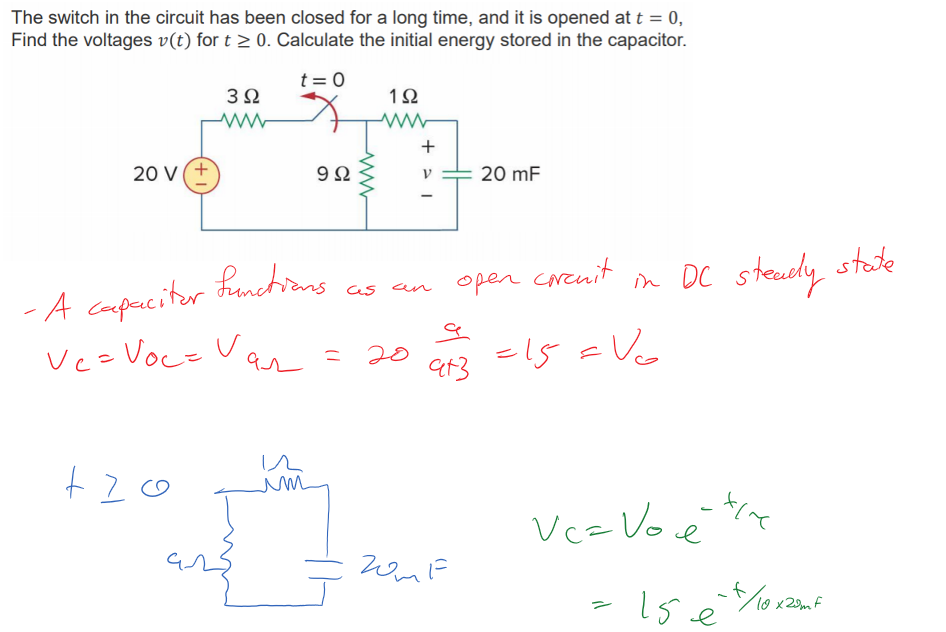

The switch in the circuit has been closed for a long time, and it is opened at t = O,
Find the voltages v(t) for t 0. Calculate the initial energy stored in the capacitor.
IQ
20 v
20 mF

Ink Drawings
Ink Drawings
Ink Drawings

Ink Drawings
Ink Drawings
Ink Drawings
