Exercises

Monday, 13 August 2018

12:30 PM

Untitled picture.png Machine generated alternative text:
Exercise

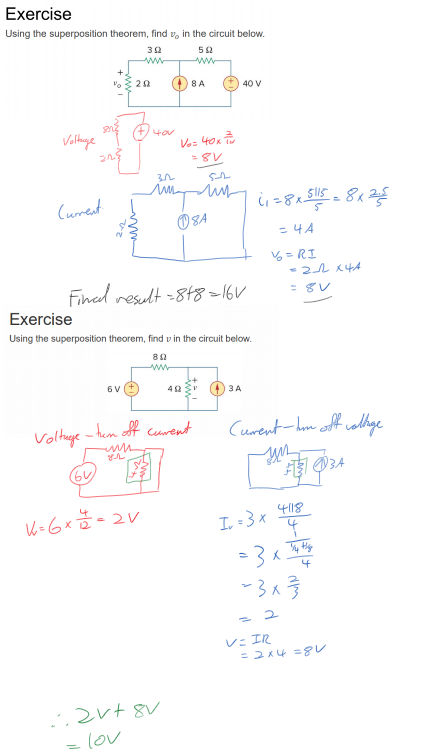

Using the superposition theorem, find vo in the circuit below.
40 V

Untitled picture.png Machine generated alternative text:
Exercise
Using the superposition theorem, find v in the circuit below.
Ink Drawings
Ink Drawings
Ink Drawings

Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings

Untitled picture.png Machine generated alternative text:
Exercise

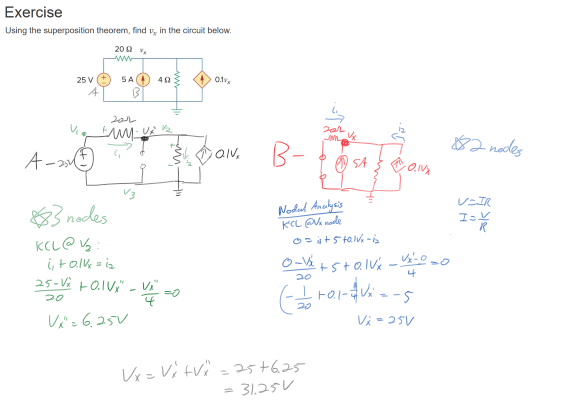

Using the superposition theorem, find vx in the circuit below.
200 vx
Oiv
25 v
Ink Drawings
Ink Drawings
