Voltage and Current Division

Monday, July 30, 2018

12:33 PM

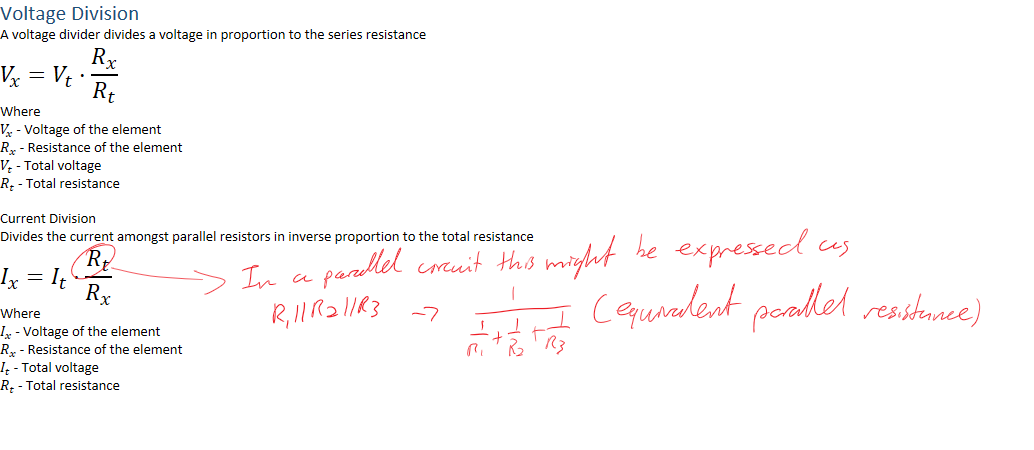

Voltage Division A voltage divider divides a voltage in proportion to the series resistance ﷐𝑉﷮𝑥﷯=﷐𝑉﷮𝑡﷯⋅﷐﷐𝑅﷮𝑥﷯﷮﷐𝑅﷮𝑡﷯﷯ Where ﷐𝑉﷮𝑥﷯ - Voltage of the element ﷐𝑅﷮𝑥﷯ - Resistance of the element ﷐𝑉﷮𝑡﷯ - Total voltage ﷐𝑅﷮𝑡﷯ - Total resistance Current Division Divides the current amongst parallel resistors in inverse proportion to the total resistance ﷐𝐼﷮𝑥﷯=﷐𝐼﷮𝑡﷯⋅﷐﷐𝑅﷮𝑡﷯﷮﷐𝑅﷮𝑥﷯﷯ Where ﷐𝐼﷮𝑥﷯ - Voltage of the element ﷐𝑅﷮𝑥﷯ - Resistance of the element ﷐𝐼﷮𝑡﷯ - Total voltage ﷐𝑅﷮𝑡﷯ - Total resistance Ink Drawings Ink Drawings Ink Drawings
