Series and Parallel Connection of Circuit Elements

Monday, July 30, 2018

12:32 PM

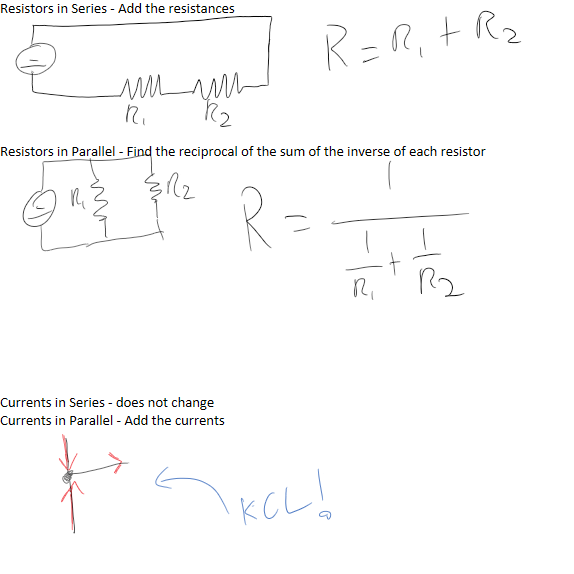

Resistors in Series - Add the resistances

Resistors in Parallel - Find the reciprocal of the sum of the inverse of each resistor

Currents in Series - does not change
Currents in Parallel - Add the currents
