The voltage of the capacitor in the following circuit under steady state when the switch is open is equal to?

Sunday, 2 September 2018

11:15 PM

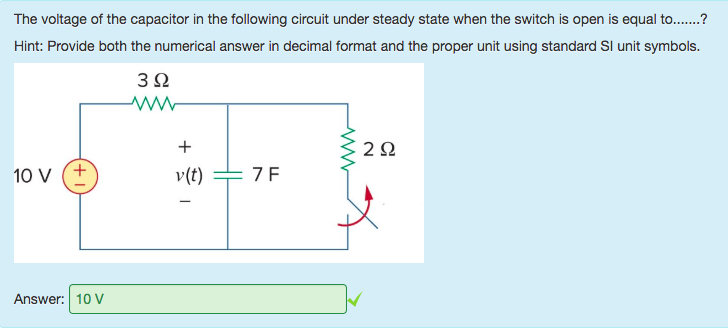

Machine generated alternative text:
The voltage of the capacitor in the following circuit under steady state when the switch is open is equal to.......?
Hint: Provide both the numerical answer in decimal format and the proper unit using standard Sl unit symbols.
10 v
Answer: 10 V

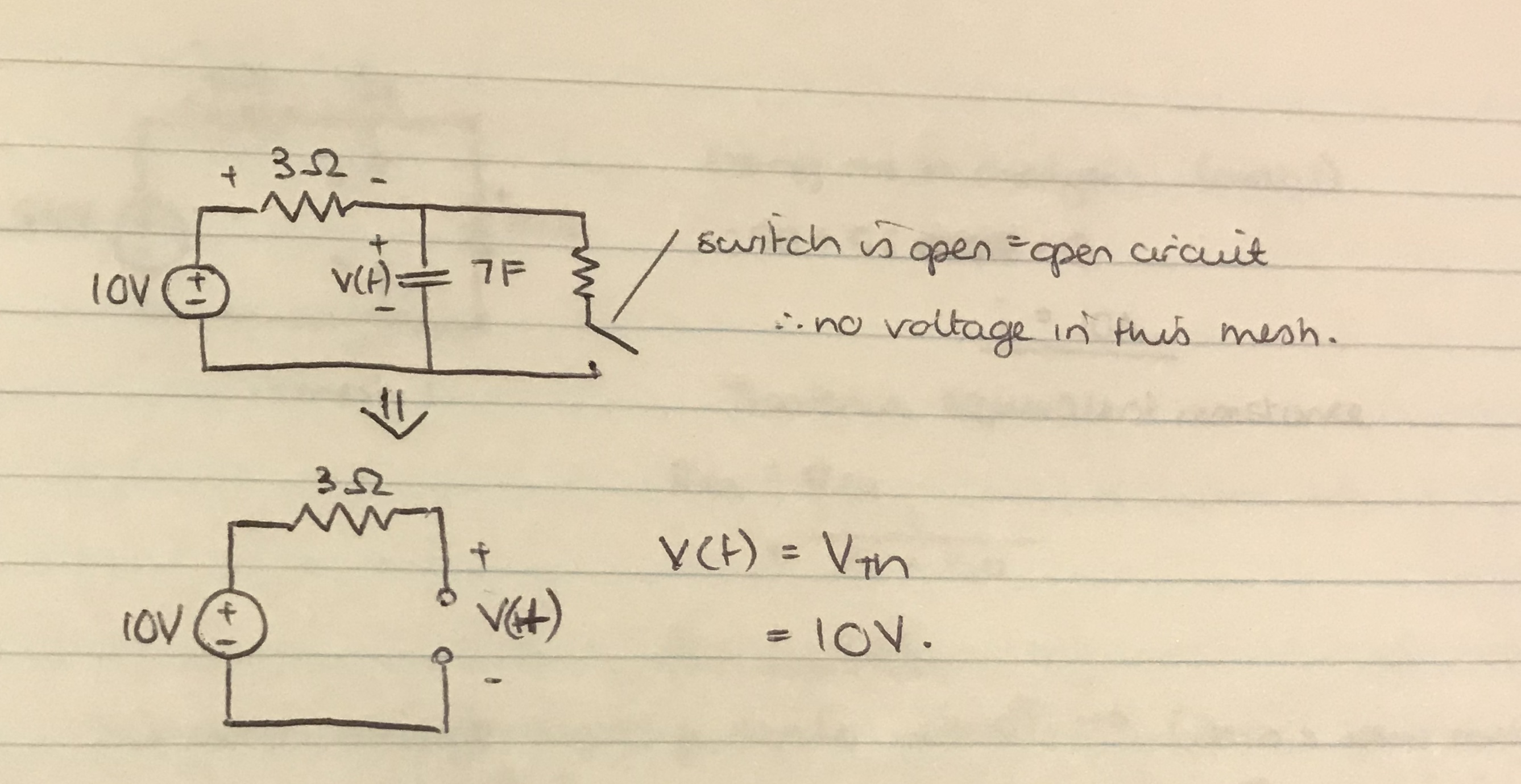

Machine generated alternative text:
Ocuj.Æ
