(Mid-semester S2, 2016) Find the time constant of the circuit when the switch is in the closed position

Sunday, 2 September 2018

11:12 PM

Machine generated alternative text:

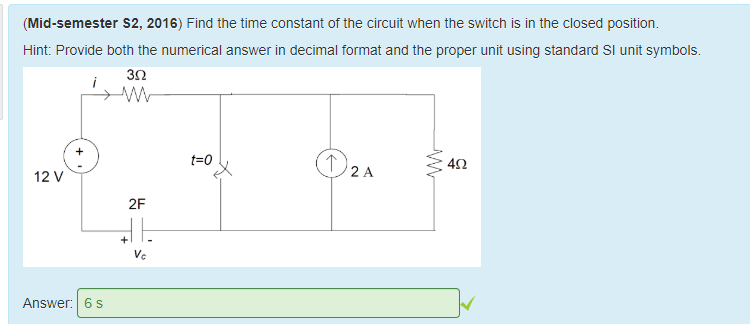

(Mid-semester S2, 2016) Find the time constant of the circuit when the switch is in the closed position.
Hint: Provide 50th the numerical answer in decimal format and the proper unit using standard Sl unit symbols.
30
40
12 v
Answer:

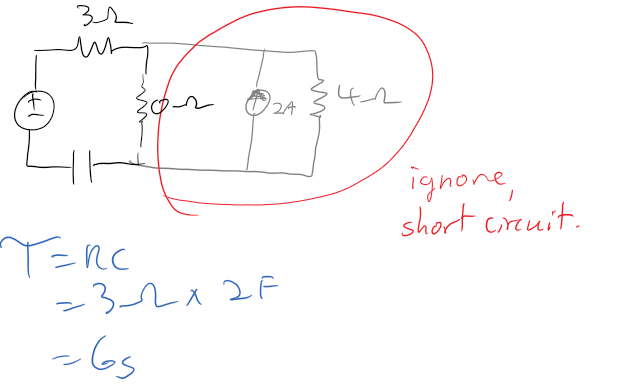

Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
Ink Drawings
