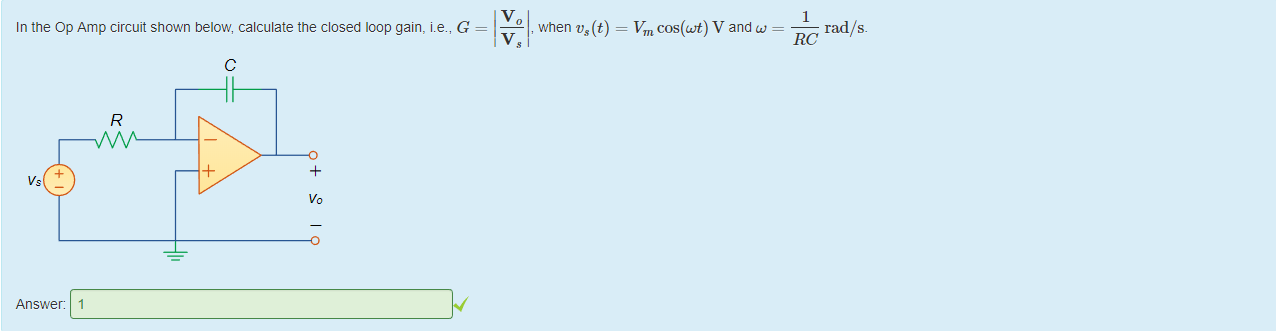

In the Op Amp circuit shown below, calculate the closed loop gain, i.e., G=∣∣∣VoVs∣∣∣, when vs(t)=Vmcos(ωt)V and ω=1RCrad/s.
