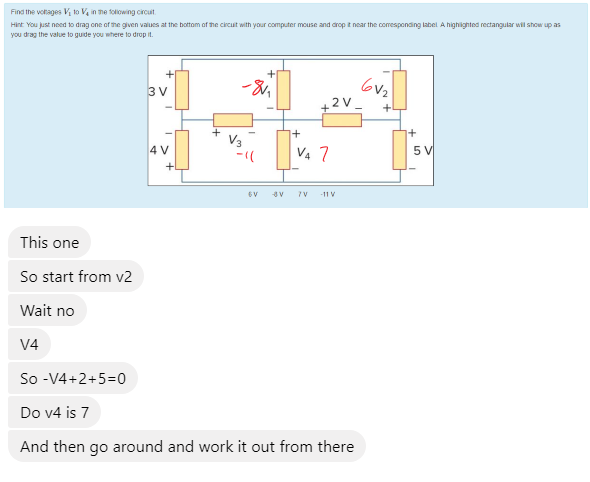

Find the voltages V1 to V4 in the following circuit.

Sunday, 12 August 2018

8:22 PM

Untitled picture.png Machine generated alternative text:
Find the voltages VI to V4 in the following circuit.
Hint: You just need to drag one of the given values at the bottom of the circuit witn your computer mouse and drop it near the corresponding label. A highlighted rectangular will snow up as
you drag the value to guide you where to drop it.
-11 v

Untitled picture.png Machine generated alternative text:
This one
So start from v2
Wait no
so -V4+2+5=o
Do v4 is 7
And then go around and work it out from there
