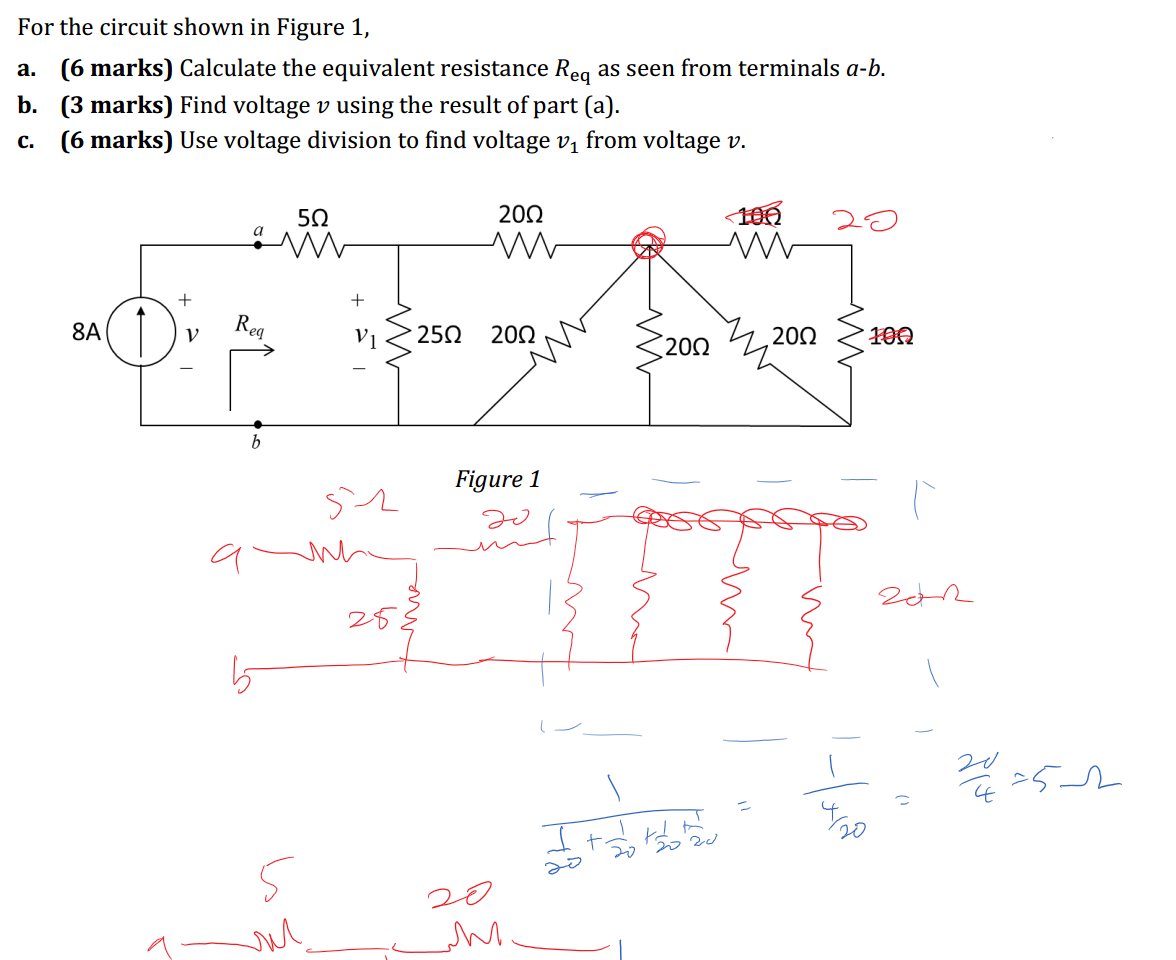

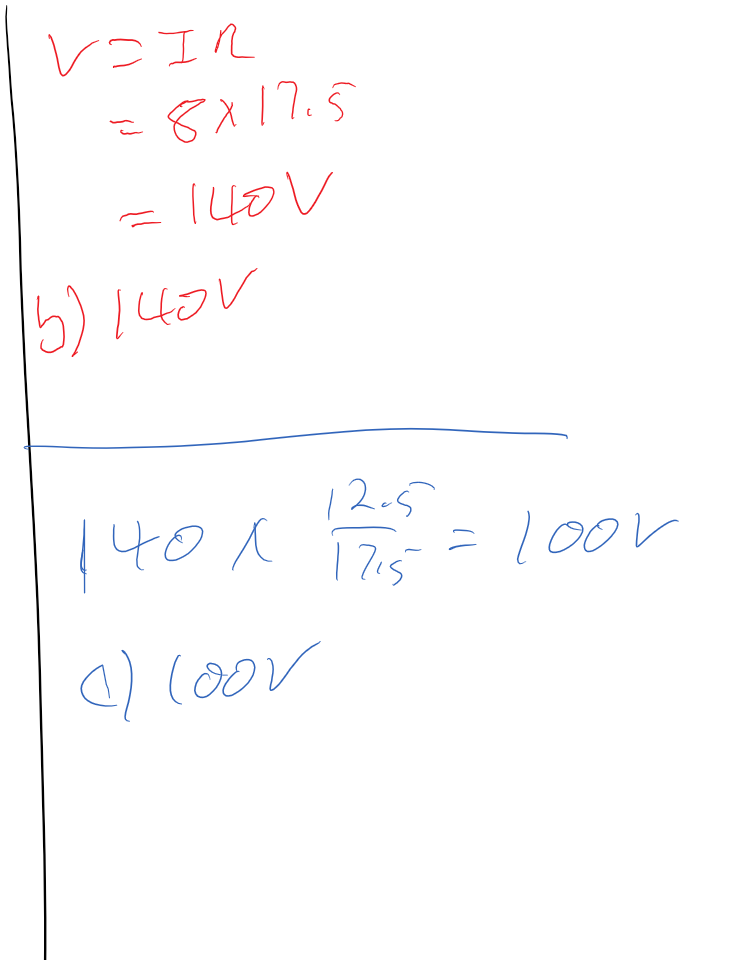

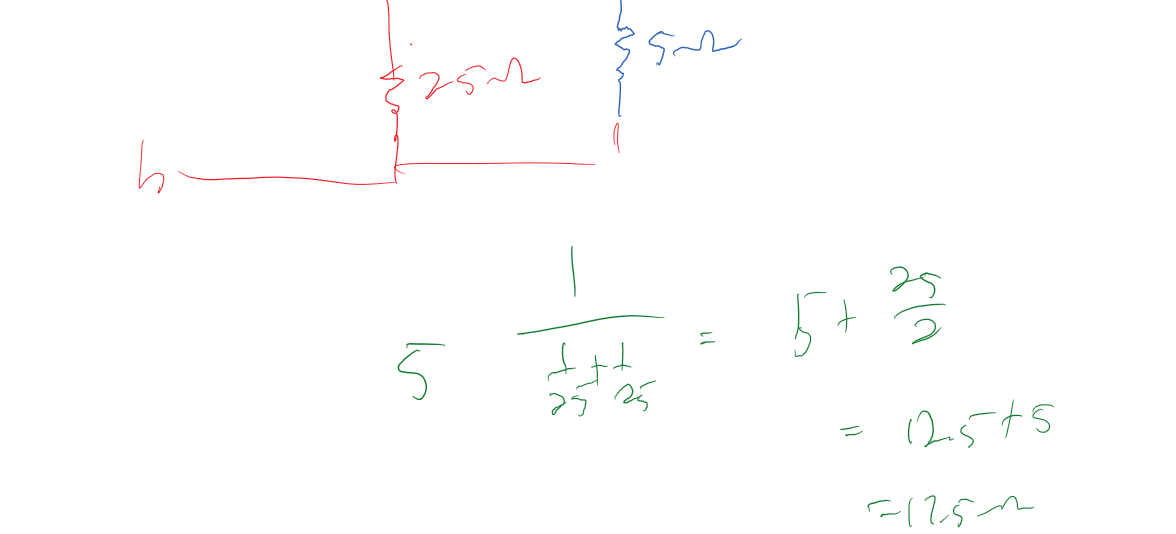

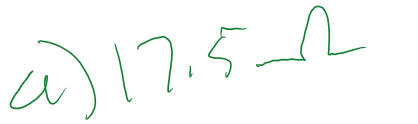

 Untitled picture.png Machine generated alternative text: For the circuit shown in Figure 1, a. (6 marks) Calculate the equivalent resistance Req as seen from terminals a-b. b. (3 marks) Find voltage v using the result of part (a). c. (6 marks) Use voltage division to find voltage VI from voltage v. 8A 50 a eq b 250 200 200 100 200 200 IOQ Figure 1 Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings  Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings    Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings     Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings Ink Drawings
