A graph is a collection type where each node knows of its related nodes.

They’re used heavily in path finding algorithms…

• Which nodes are connected?
• Are the nodes fully connected?
• Can I get from A to B? Fastest way? Cheapest way?

Reminds me of the game One Touch Drawing by Ecapyc

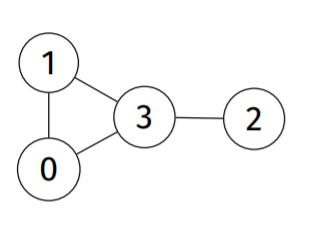

A graph is a set of vertices V and edges E

An edge (v,w) ≠ (w,v)

Types of Graphs

Undirected

Directed / Digraph

• A digraph with V vertices can have at most V^2 edges
• Digraphs can have self loops (v → v)

Multigraph

• Allows for multiple edges between two vertices
• eg. callgraphs and maps

Weighted

• Each edge has an associated weight
• eg. maps and networks

Simple Graphs

• A set of vertices
• A set of undirected edges
• No self loops
• No parallel edges
• Max edges - |E| = V * (V-1)/2

Density and Sparsity
If E is closer to V^2 - considered dense
If E is closer to V - considered sparse If E = 0 - we have a set (no paths) If E = |E| - complete graph

deg(v) -> Number of edges incident on a vertex

• A path is a sequences of vertices and edges
• A path is simple if it has no repeating vertices
• A path is a cycle if it is simple, but loops (like a circular linked list)
• A graph is connected if there is a path from every vertex to every other (A somehow reaches B)
• A tree is a connected with no cycles; each pair of vertices has only one path between
• A spanning tree of a graph is a subgraph that contains all its vertices and is a single tree (???)
• A spanning forest of a graph is a subgraph that contains all its vertices an is a set of trees
• A clique is a complete subgraph

Graph Representation

Adjacency Matrices

An adjacency matrix is a way of implementing a graph.
It is a V x V matrix

Whilst it is an easy to understand (and easy to implement) method, it consumes a large memory overhead, since it needs to store information to say “No I’m not connected to …”.

Implementation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

struct graph {
  size_t n_vertices;
  // size_t n_edges;
  bool **matrix;
}

/*
G->matrix => [-->] {    }
             [-->] {    }
             [-->] {    }
             [-->] {    }
*/

Adjacency Lists

An alternative to adjacency matrices are adjacency lists.
Here we use a linked list association to only store information of edges that exist

Implementation

 1
 2
 3
 4
 5
 6
 7
 8
 9
10

struct adjnode {
  Vertex v;
  struct adjnode *next;
};

struct graph {
  size_t n_vertices;
  size_t n_edges;
  struct adjnode **edges;
};

Edge Lists

Node Links

Comparison

So, this suggests that adjacency matrices are better than adjacency lists!
They cost less operations, however take up a higher memory footprint.
Sooo, for small numbers of vertices (how small is small though???), adjacency matrices are preferred, else use adjacency lists.

Graph Search

To determine if a path exists between the vertices v and w, we would have to examine the vertices adjacent to v to check if any of them are w. Else check if any of the adjacent vertices are adjacent to w, and if the adjacent vertices of the adjacent vertices are, and if the adjacent vertices to the adjacent vertices of the adjacent vertices are, and so forth..

Pseudo

• Create a crawl structure with the starting node
• Get the next vertex, mark it as visited, and repeat for its neighbours

Methods

• BFS - Breadth First (Adjacent nodes first) - use a queue
• DFS - Depth First (Longest paths first) - use a stack
• Dijkstra (Lowest-cost paths first)
• GBFS - Greedy Best-First (Shortest heuristic distance)
• A* - Lowest-cost and shortest-heuristic distance

DFS - Depth-First Search

Search through the longest paths first

count - number of vertices traversed so far
pre[] - order in which vertices were visited (for ‘pre-order’)
st[] - predecessor of each vertex (for ‘spanning tree’)

The edges traversed in all graph walks form a spanning tree, which:

• has edges corresponding to the call-tree of the recursive function
• is the original graph without cycles and alternative paths

If a graph is not connected, a DFS will produce a spanning forest.
An edge connecting a vertex with an ancestor that is not its parent is a back-edge.
